Passion Fruit Size Sorting Machine

Not one-size-fits-all — we customize.

Model：JCBXG-3000B

Applications：Passion fruit, lemon, orange, etc.

Dimension:9400*1650*1250mm

Grade:5 grades

Capacity:3t/h

Voltage:380V

Power:1.47kw

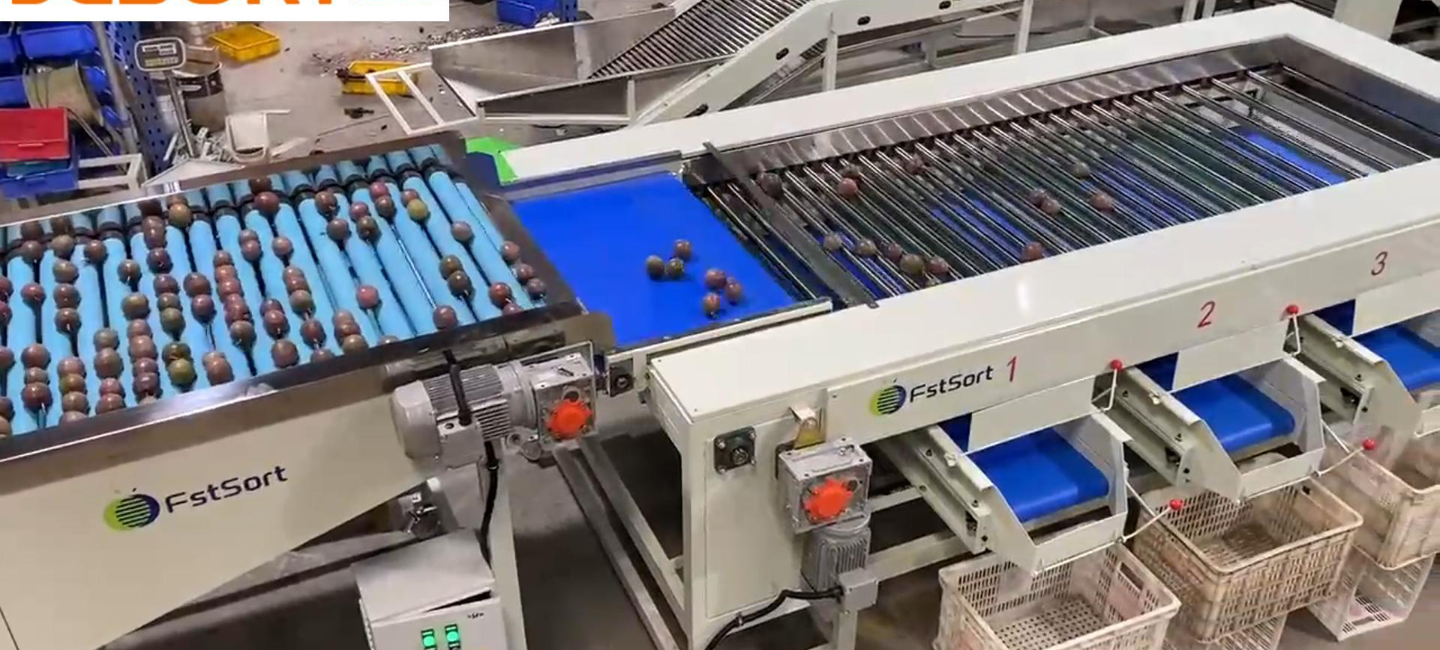

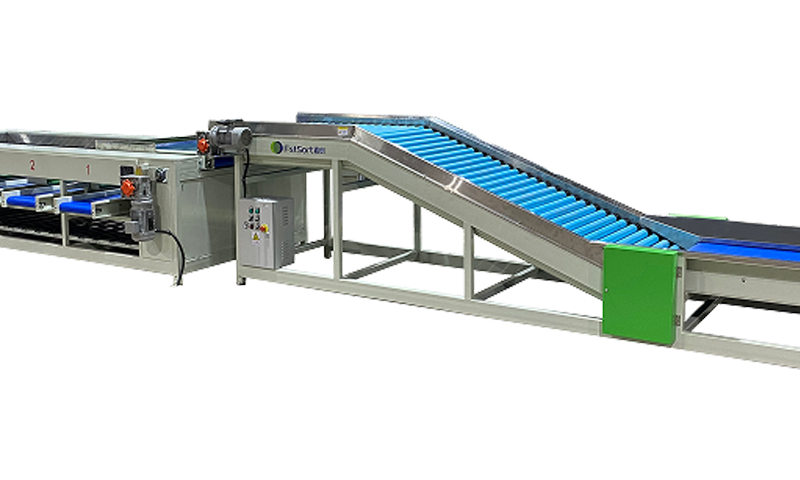

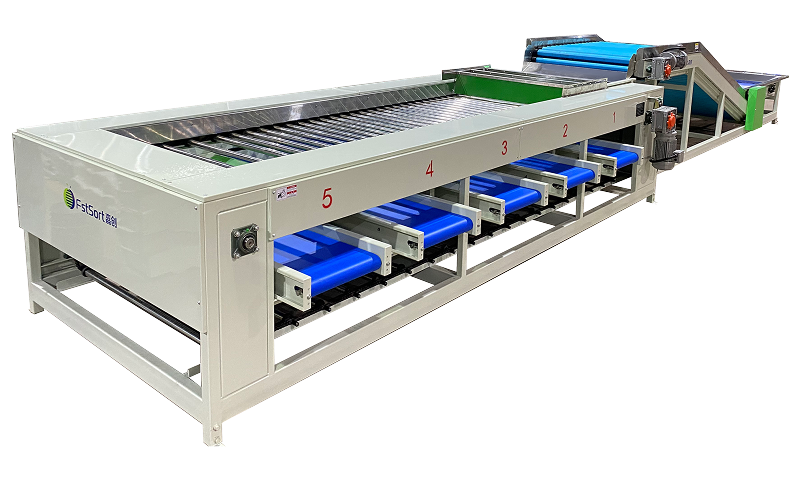

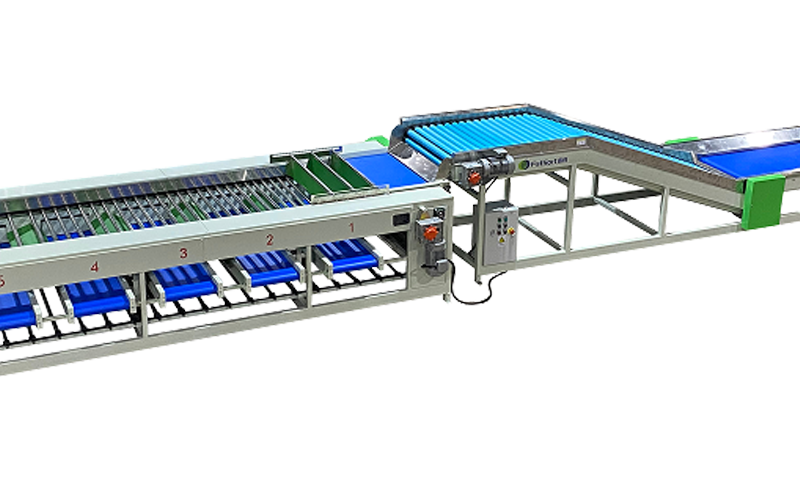

This JC SORT passion fruit grader consists of an elevator and a grader. The elevator is automatic, and the rollers rotate automatically to achieve uniform feeding. The grader is a roller-type grader. The roller-type grader rotates through the spiral shaft to drive the rollers on the grading bed to move forward in parallel, and gradually increase the gap between the rollers to achieve the corresponding size of the passion fruit, so that the passion fruit falls from the gap between the rollers onto the fruit conveyor belt, completing the purpose of passion fruit size grading.
