Cucumber sorting grading machine

Cucumber Sorting Grading Machine

Not one-size-fits-all — we customize.

Model：JCHG-3000B

Application：Cucumber, carrot, eggplant, potato, etc.

Dimension:10040*1650*1320mm

Grade:5 grades

Capacity:3t/h

Voltage:380V

Power:2.4kw

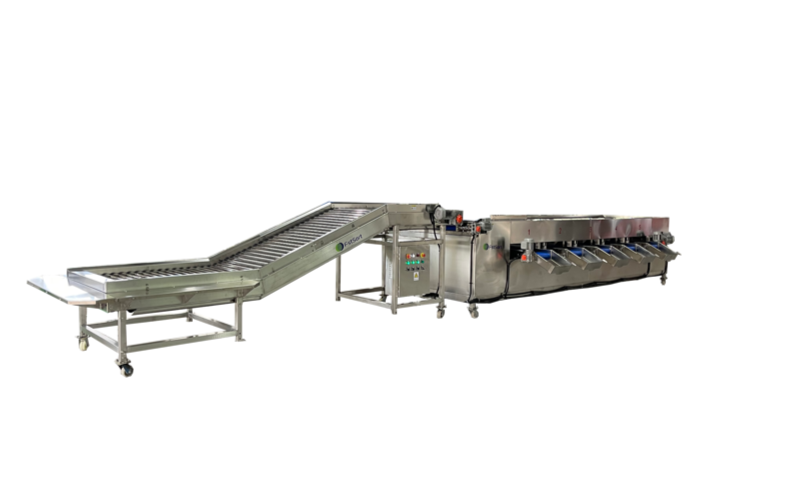

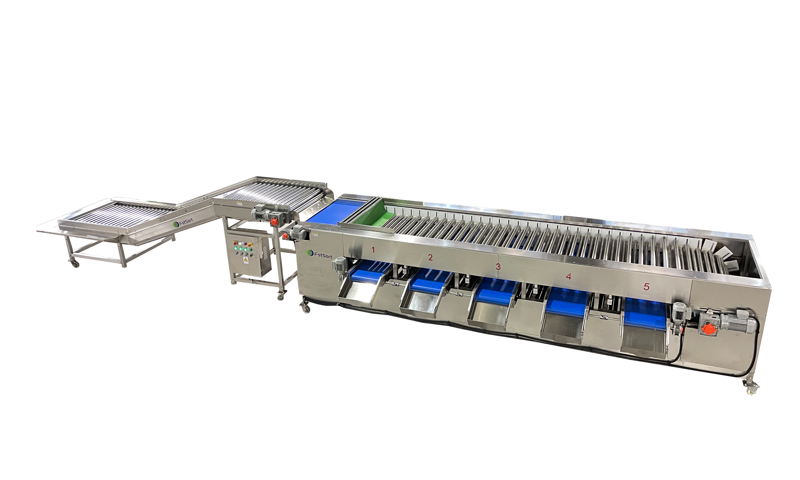

This JC SORT cucumber grader is composed of an elevator and a grader. The elevator is automatically lifted and the rollers rotate automatically to achieve uniform feeding. The grader is based on the principle of lifting rollers, using a series of stainless steel rollers that move forward, a fixed bottom roller and a height-adjustable roller to grade crops by width and diameter. Each first and second roller is mounted on a polymer guide plate, which enables them to lift vertically to achieve grade size sorting, suitable for sorting a variety of crops.
