Blueberry Sorting Grading Machine

Blueberry Sorting Machine

Not one-size-fits-all — we customize.

Model:JCLM-300A

Application:Blueberry

Dimension:3745*1165*985mm

Grade:3-4 grades

Capacity:300kg/h

Voltage:220V

Power:1kw

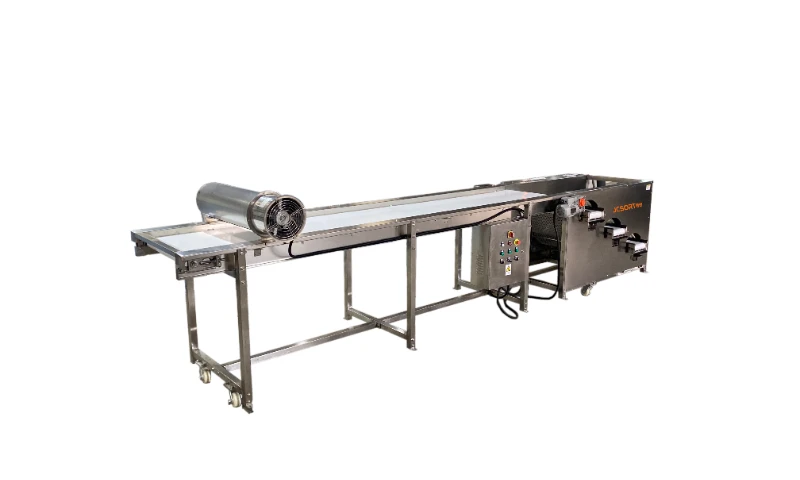

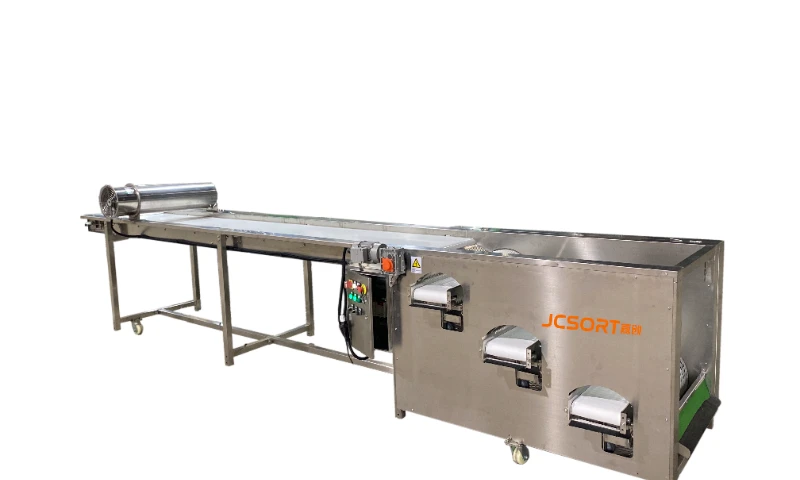

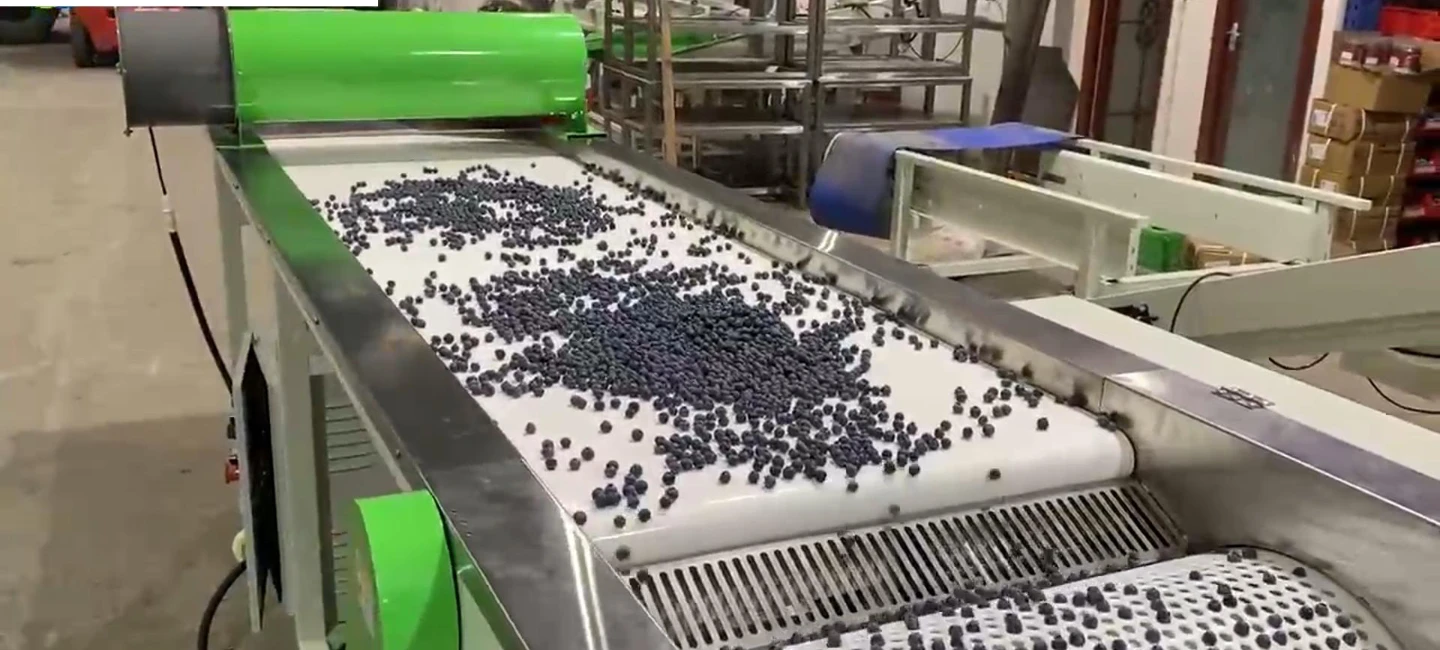

This JC SORT blueberry grading machine consists of a conveyor belt picking platform, a fan and a grading part. Through manual feeding, the fan blows away impurities, and the inferior fruits and impurities are picked off on the conveyor belt, and then enter the grading part. Each grading roller in the grading part is equipped with round holes of different diameters, which are evenly arranged on the roller (the grade closest to the feed inlet is the smallest grade, and according to the diameter of the holes on the roller, the second and third grades are in turn, and the blueberries in the last grade are the largest). Blueberries enter the sorting part from the conveyor belt in turn, and are graded by size under the action of the sieve-like roller. The blueberries of the corresponding diameter size of each roller will be transported to the user's turnover basket by the corresponding outlet conveyor belt, thus completing the entire sorting process.
